Comprehensive Tutorial: Designing Business Processes with UML Activity Diagrams

Business processes are the backbone of any organization. They define how work flows, who is responsible for specific tasks, and where decisions occur. To visualize these complex interactions effectively, modeling languages provide a standardized way to communicate structure and logic. The Unified Modeling Language (UML) offers several diagrams, but the Activity Diagram stands out for its ability to represent dynamic behavior and workflow logic. This guide explores how to design business processes using UML activity diagrams, focusing on clarity, accuracy, and maintainability.

Understanding the Activity Diagram 📋

An activity diagram describes the flow of control in a system. It is similar to a flowchart but incorporates elements specific to object-oriented design and concurrent processing. In the context of business process modeling, these diagrams serve as a blueprint for operational workflows. They help stakeholders visualize the sequence of actions, the conditions under which they occur, and the parallel activities that take place.

• Dynamic View: Unlike static structure diagrams, activity diagrams show the behavior of the system over time.
• Workflow Focus: They are ideal for modeling business logic, user stories, and algorithmic processes.
• Concurrency: They handle parallel threads of activity, which is common in real-world business operations.
• Decision Making: They explicitly show branching paths based on specific conditions.

When designing business processes, the goal is not just to draw a picture, but to create a specification that developers and business analysts can interpret without ambiguity. The activity diagram bridges the gap between high-level business requirements and technical implementation details.

Core Components of an Activity Diagram 🔧

To construct a meaningful diagram, one must understand the fundamental building blocks. Each element has a specific semantic meaning. Using them incorrectly can lead to confusion or logic errors in the process design.

1. Initial and Final Nodes 🟢

Every process has a starting point and an ending point. The initial node is represented by a filled black circle. It marks the entry point where the workflow begins. The final node is also a filled circle, often surrounded by a ring, indicating the successful termination of the process. Some tools allow for multiple final nodes to represent different outcomes, such as a completed transaction versus a failed transaction.

2. Activity Nodes ⚙️

These are the main actions performed within the system. They are typically drawn as rounded rectangles. Inside the box, you write the name of the activity, such as “Validate User” or “Generate Invoice.” These nodes represent a unit of work that has an input and an output.

3. Control Flow Arrows ➡️

Control flow arrows connect activity nodes to indicate the sequence of execution. The arrow points from the source action to the destination action. This represents the dependency between tasks. If Task A must finish before Task B can start, the arrow flows from A to B.

4. Object Flows 📦

While control flow represents the sequence of actions, object flow represents the movement of data or documents. These are often shown as dashed lines connecting activities to objects (represented by rectangles). For example, an “Order” object might be created during the “Receive Order” activity and then passed to the “Check Inventory” activity.

Symbol Reference Table 📊

Refer to the following table to quickly identify standard UML symbols used in business process modeling.

Symbol	Name	Description
⚫	Initial Node	Start of the activity flow.
⚫ with Ring	Final Node	End of the activity flow.
🟦 Rounded Rect	Activity	A specific action or task.
⬡ Diamond	Decision Node	A branching point based on a condition.
⬡ Filled Circle	Join Node	Merges incoming flows into a single flow.
⬡ Hollow Circle	Fork Node	Splits one flow into multiple concurrent flows.
🏷️ Label	Guard Condition	Text in brackets (e.g., [stock > 0]) on a flow.
📄 Document	Object Flow	Represents data or artifact movement.

Organizing Responsibility with Swimlanes 🏊

One of the most powerful features of the activity diagram is the swimlane. A swimlane divides the diagram into parallel tracks. Each track represents a specific actor, department, or system component. This organization clarifies who is responsible for each step in the process.

Benefits of Swimlanes

• Accountability: It is immediately clear which role performs an action.
• Handoffs: It visualizes the transfer of control between different parties.
• Parallelism: It shows which parties act simultaneously versus sequentially.
• Complexity Management: It breaks a large process into manageable sections.

Implementing Swimlanes

When designing a business process, group related activities under the appropriate swimlane. For instance, in a customer order process, you might have lanes for “Customer,” “Sales System,” “Warehouse,” and “Finance.”

• Customer Lane: Contains actions like “Submit Order” or “Confirm Payment.”
• Sales System Lane: Contains actions like “Validate Order” or “Check Stock.”
• Warehouse Lane: Contains actions like “Pick Items” or “Pack Box.”
• Finance Lane: Contains actions like “Issue Invoice” or “Record Revenue.”

When the flow moves from one lane to another, it indicates a handoff. For example, when the “Sales System” completes “Validate Order,” the control flow crosses into the “Warehouse” lane to trigger “Pick Items.” This crossing point is critical for identifying bottlenecks or communication gaps.

Handling Logic with Decision and Merge Nodes 🧠

Real-world business processes are rarely linear. They involve choices. A decision node, depicted as a diamond, allows the flow to branch based on a condition. Each outgoing path from a decision node must have a guard condition, which is a boolean expression enclosed in square brackets.

Decision Logic

• Simple Decisions: Use binary choices (True/False) for clarity. For example, [Is Stock Available?].
• Complex Decisions: Use multiple paths for different scenarios. For example, [Status = Approved], [Status = Rejected], [Status = Pending].
• Guard Conditions: Ensure that every path has a label. Unlabeled paths can lead to ambiguity regarding which condition triggers the flow.

Merge Nodes

When different branches of a process converge, they meet at a merge node. This node waits for any incoming flow to arrive and continues the process. It does not synchronize like a join node; it simply passes control along the next step once a path is completed.

Example: In a shipping process, one path might lead to “Ship Standard,” and another to “Ship Express.” Both paths eventually merge at a “Send Notification to Customer” node. The merge node ensures that regardless of the shipping method, the customer is notified.

Managing Concurrency with Fork and Join Nodes 🔄

Many business activities happen at the same time. A single thread of control cannot represent this. Fork and Join nodes allow the diagram to split into concurrent activities and then recombine.

Fork Node

A fork node splits a single incoming flow into multiple outgoing flows. All outgoing flows are activated simultaneously. This is useful for tasks that do not depend on each other.

• Example: After an order is paid, the system can simultaneously “Update Inventory” and “Send Confirmation Email.” These actions do not need to wait for each other.

Join Node

A join node waits for all incoming flows to complete before proceeding. This ensures synchronization. If one path takes longer than the other, the process pauses at the join node until the final path arrives.

• Example: After “Update Inventory” and “Send Confirmation Email” are done, the process joins at “Generate Shipping Label.” The label cannot be generated until both previous tasks are finished.

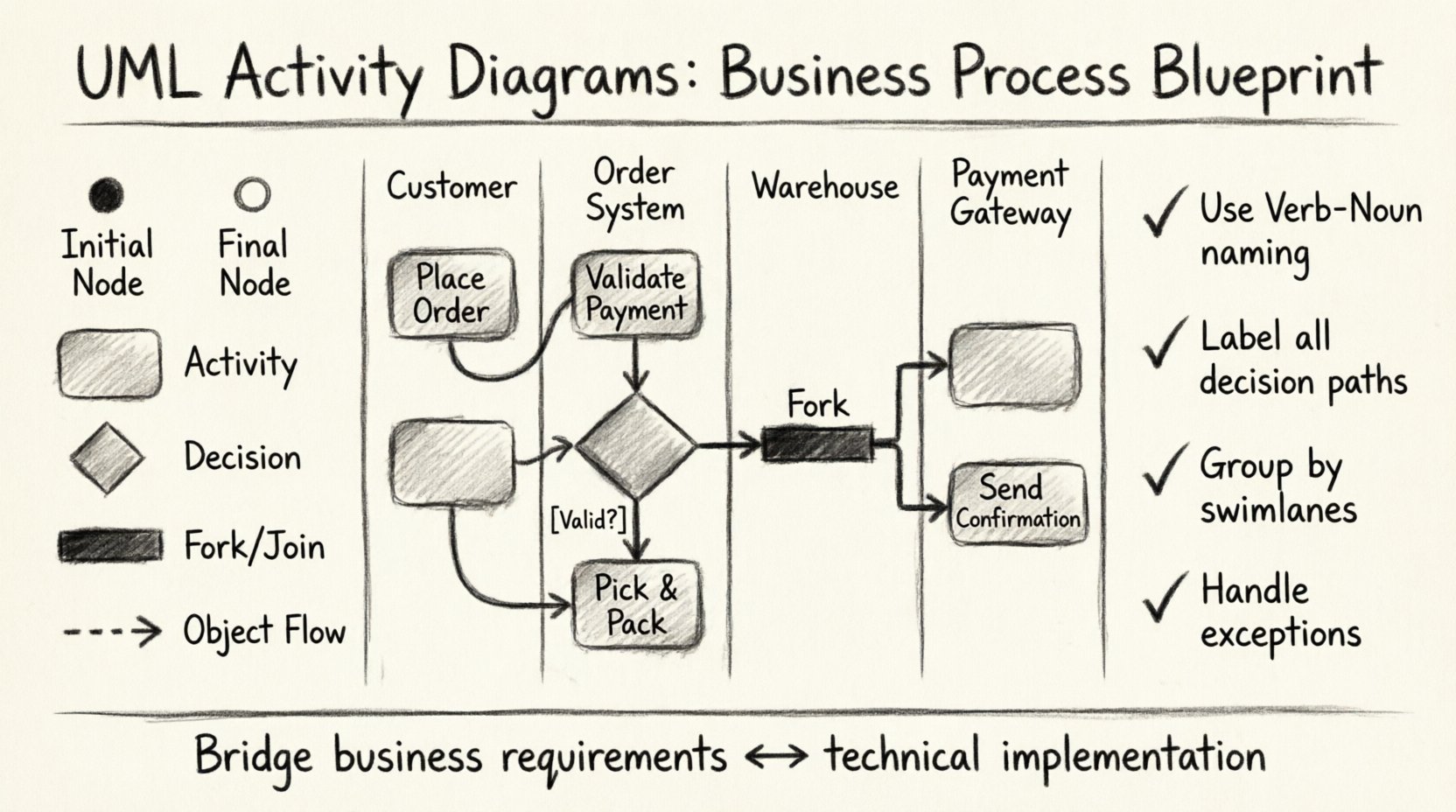

Practical Example: Order Fulfillment Process 🛒

To demonstrate these concepts, let us construct a scenario for an online retail order fulfillment process. This example integrates initial nodes, swimlanes, decisions, and concurrency.

Step 1: Define the Actors

• Customer: Initiates the purchase.
• Order System: Processes the transaction.
• Warehouse: Handles physical goods.
• Payment Gateway: Verifies funds.

Step 2: Map the Initial Flow

1. Start at the Customer lane with “Place Order.”
2. Flow moves to the Order System lane for “Validate Order.”
3. A decision node checks [Valid?].
4. If No, flow goes to “Notify Customer” and ends.
5. If Yes, flow moves to Payment Gateway lane for “Process Payment.”

Step 3: Add Concurrency

Once payment is successful, the process splits:

• Path A: Flow to Warehouse lane for “Pick and Pack Items.”
• Path B: Flow to Order System lane for “Send Receipt Email.”

These activities run concurrently. The system does not wait for the email to send before packing the box.

Step 4: Synchronize and Finalize

Once “Pick and Pack Items” is complete, the flow moves to a join node. The “Send Receipt Email” activity may finish earlier, but the main flow waits at the join node.

• After the join, the flow moves to “Generate Shipping Label.”
• Next, the system updates the Order System database with “Mark as Shipped.”
• The process ends at the final node in the Order System lane.

Step 5: Error Handling

Business processes must handle failures. In the Warehouse lane, add a decision node after “Pick Items” labeled [Items Found?].

• If No: Flow goes to “Log Shortage” and notifies the Customer via “Send Out of Stock Notification.”
• If Yes: Flow proceeds to “Pack Items.”

This level of detail ensures that the business rules regarding stockouts are clearly defined and actionable.

Best Practices for Clarity and Maintainability 📝

A diagram that is too complex becomes useless. Follow these guidelines to keep your activity diagrams effective.

• Limit Complexity: If a diagram spans multiple pages, it is likely too complex. Break it down into sub-processes or use sub-activities to delegate to a separate diagram.
• Use Consistent Naming: Activity names should follow a Verb-Noun structure (e.g., “Validate Login,” not “Login Validation”). This ensures active voice and clarity.
• Minimize Crossing Lines: Avoid arrow crossings where possible. Use orthogonal routing (right angles) to make the flow easier to trace.
• Group Related Activities: Use swimlanes to group tasks logically. Do not mix technical system actions with human tasks in the same lane unless they represent a unified step.
• Document Guard Conditions: Clearly label every decision path. Do not assume the reader knows the logic.
• Review with Stakeholders: Validate the diagram with the actual people who perform the work. They will spot logical gaps that technical analysts might miss.

Common Pitfalls to Avoid 🚫

Even experienced modelers make mistakes. Watch out for these common issues that degrade the quality of the process model.

1. The ‘Spaghetti’ Diagram

When arrows cross in every direction, the diagram becomes unreadable. Use sub-activities to hide complexity. If a specific section of the process is detailed, create a separate activity diagram for it and link it via a call activity.

2. Ignoring Exceptions

Most diagrams show the happy path—the process when everything goes right. A robust business process model must account for errors. Always include paths for validation failures, system outages, or missing data.

3. Mixing Levels of Abstraction

Do not mix high-level strategic steps with low-level technical implementation details. For example, avoid listing specific SQL queries or API endpoints within the activity nodes. Keep the diagram at the business logic level.

4. Overusing Fork/Join

Concurrency adds complexity. Only use fork and join nodes when true parallelism is required. If activities must happen sequentially, do not split them.

5. Lack of Context

Every diagram should have a title and a description. Define the scope of the process. Is this for the entire order lifecycle, or just the payment phase? Context prevents misinterpretation.

Integration with Business Requirements 📌

Activity diagrams are not created in a vacuum. They must align with business requirements. When a requirement states that “The system must notify the customer immediately upon shipment,” the activity diagram must reflect the “Send Notification” node directly following the “Mark as Shipped” action.

This alignment ensures traceability. If a requirement changes, you can locate the specific activity node and update the flow. This makes the diagram a living document that evolves with the business.

Conclusion on Design Strategy 🏁

Designing business processes with UML activity diagrams requires a balance between visual simplicity and logical completeness. By using swimlanes to define responsibility, decision nodes to handle logic, and fork/join nodes to manage concurrency, you create a robust specification. Remember to prioritize readability and maintainability. A diagram that is hard to understand will not be used, rendering the modeling effort ineffective. Regular reviews and adherence to naming conventions ensure the diagrams remain valuable assets for the organization.
